RF Switch

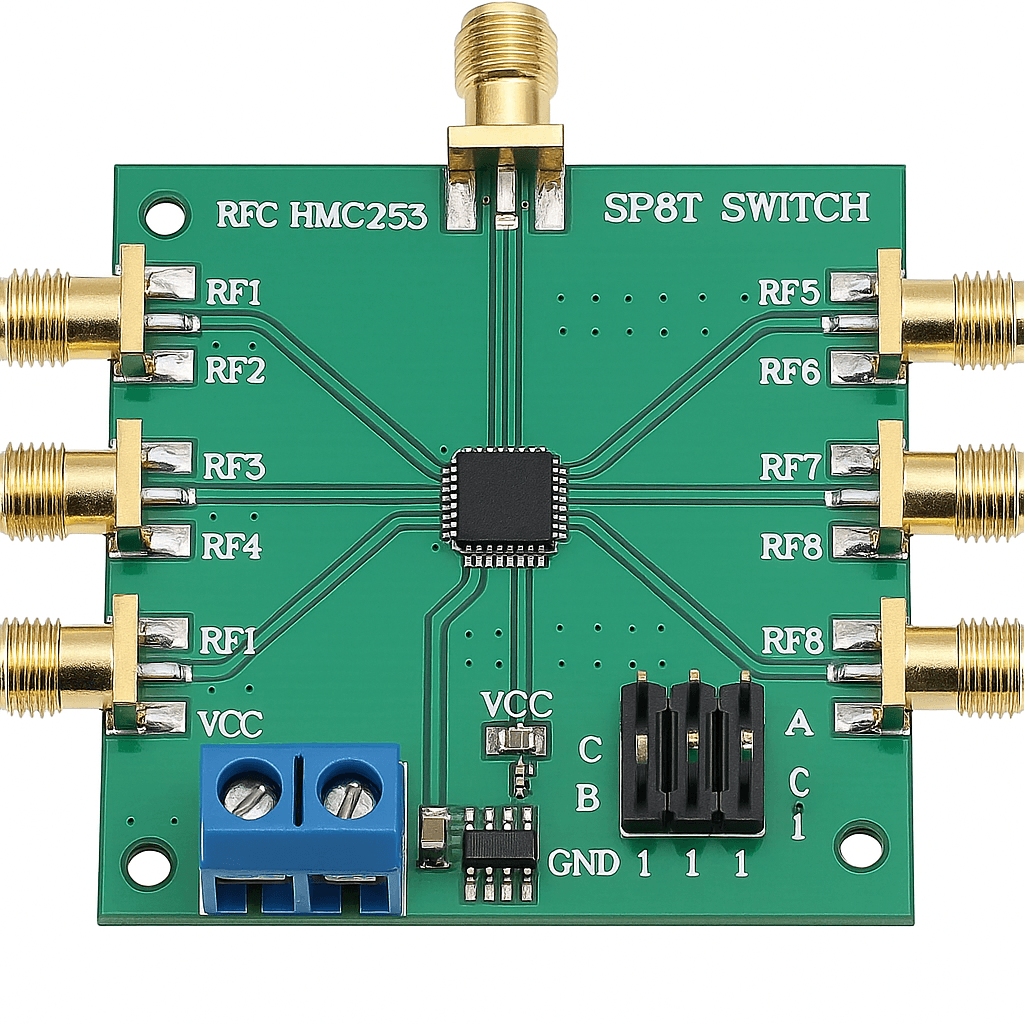

This SP8T RF Switch Module (Single Pole Eight Throw) is a compact, high-performance RF switching solution built around the HMC253 integrated circuit. It is designed for applications that require routing a single RF input/output signal to one of eight selectable RF paths with minimal insertion loss and high isolation. The board has SMA female connectors, allowing seamless integration into RF test benches, signal routing systems, antenna selection networks, and automated RF switching environments.
→ IC Chipset: HMC253
→ Switch Type: SP8T (Single Pole, 8 Throw)
→ Control Method: Parallel control via 3-bit logic inputs (A, B, C)
→ Operating Frequency: DC to 2.5 GHz (depending on implementation and matching)
→ Insertion Loss: Typically < 2 dB
→ Isolation: Up to 30 dB between ports
→ Power Supply: VCC input (typically 5V)
→ Connector Type: SMA Female x9 (8 RF ports + 1 RFC port)
→ Control Interface: Jumper-selectable logic level inputs for port selection
→ Size: Compact PCB for easy integration into RF systems
